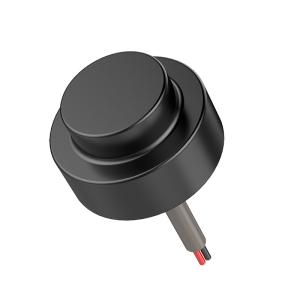

1MHz Ultrasonic Flow Transducer φ Of Transmiting Surface 10mm With Plastic Housing
Product Description:
The Ultrasonic Flow Sensor is a high accuracy water flow sensor and flow transmitter designed for ultrasonic water meters. This advanced piezoelectric flow sensor is designed to reliably and accurately measure water flow. It utilizes advanced ultrasonic technology with a frequency of 1130 ± 30 KHz and a 10 mm transmitting surface. The housing is made of highly durable plastic material with a temperature range of +0.1 to +90°C. This highly reliable flow sensor is designed to provide a cost-effective solution for fluid flow measurement in a variety of applications.
Features:
- Product Name: Ultrasonic Flow Transducer
- Temperature Range: +0.1~+90°C
- Frequency: 1130±30KHZ
- Resonant Impedance: 500±250Ω
- φ of transmiting surface: 10mm
- Water Flow Sensor: Yes
- Ultrasound Transducer: Yes
- Water Flow Sensor: Yes
Technical Parameters:
| Parameter Name |
Description |
| Product Name |
Ultrasonic Flow Transducer |
| Housing Material |
Plastic |
| Allowable Maximum Operating Pressure |
2.5MPa |
| Temperature Range |
+0.1~+90°C |
| φ of transmiting surface |
10mm |
| Resonant Impedance |
500±250Ω |
| Frequency |
1130±30KHZ |
Applications:
The AUDIOWELL US0074 ultrasonic flow sensor is an ideal solution for measuring water flow. This piezoelectric flow sensor has an emitting surface φ of 10 mm and a resonant impedance of 500±250 Ω. This ultrasonic flow sensor can measure liquid flow over a temperature range of 0.1°C to 90°C and a maximum operating pressure of 2.5 MPa. Designed for use in ultrasonic water and heat meters, this piezoelectric flow sensor is durable and can withstand the harshness of a wide range of different environments. The AUDIOWELL US0074 ultrasonic flow sensor is highly accurate and reliable.
